Waveshare S3 LCD 1.69
Waveshare · ESP32-S3 · 16 MB flash
Features
PCF85063 RTC clock chip
QMI8658 6-axis IMU (3-axis gyroscope + 3-axis accelerometer)
ETA6098 high-efficiency Li-battery charging chip
Type-C port ESP32-S3 USB, for program uploading and log printing
Buzzer audible peripheral
RTC battery connector
Power function button
Specifications
ChipESP32-S3
PSRAM2MB
Flash16MB
Display1.69" LCD
Resolution240x280
Developer resources
Board configuration
Board ID
Use this value as `board_slug` in ESPVerse API requests.
waveshare-s3-lcd-169
PlatformIO configuration
Add this environment to your `platformio.ini` file.
[env:waveshare-s3-lcd-169]
platform = espressif32@6.9.0
framework = arduino
board = esp32-s3-devkitc-1
board_upload.flash_size = 16MB
board_build.flash_mode = dio

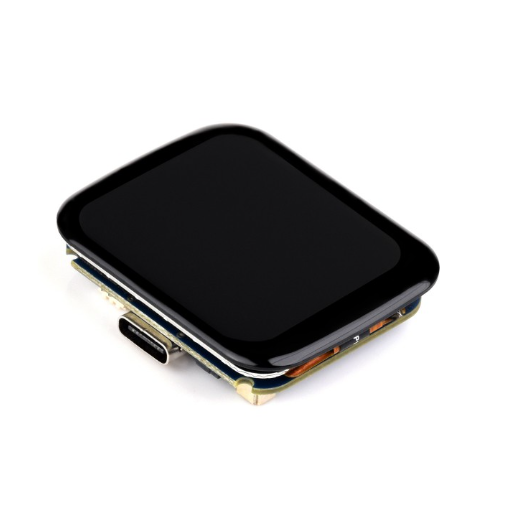

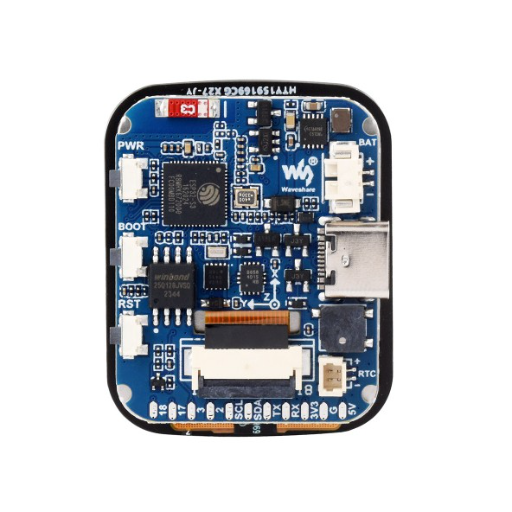

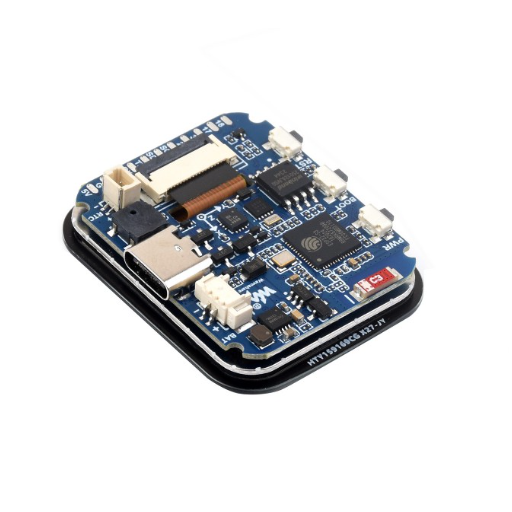

board_build.f_flash = 80000000LSample images
Waveshare S3 LCD 1.69
