Chronos Navio
Version v1.0.1
Features
Integrated digital ambient-light & proximity sensor: LTR-553ALS-WA
6-axis IMU (BMI270) + 3-axis magnetometer (BMM150)
AXP2101 power management
BM8563 RTC with low-power timed wake-up
AW88298 16-bit I2S amplifier + 1 W speaker
ES7210 codec + dual-microphone array
microSD card slot
Specifications
ChipESP32-S3
PSRAM8MB
Flash16MB
Display2.0" LCD
Resolution320x240
Developer resources
Board configuration
Board ID
Use this value as `board_slug` in ESPVerse API requests.
m5-core-s3-lite
PlatformIO configuration
Add this environment to your `platformio.ini` file.
[env:m5-core-s3-lite]
platform = espressif32@6.9.0
framework = arduino
board = lolin_s3_pro
lib_deps =
m5stack/M5Unified@0.2.14Sample images

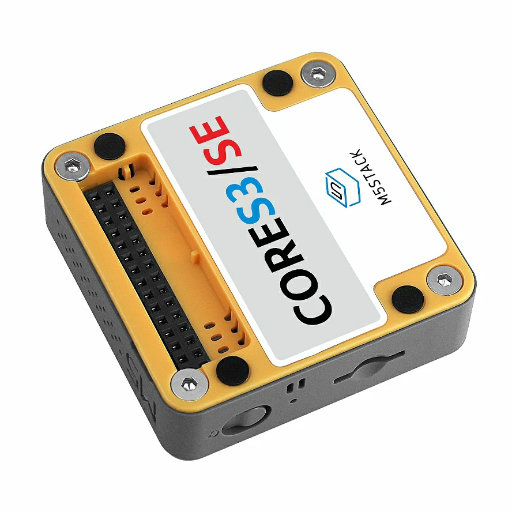

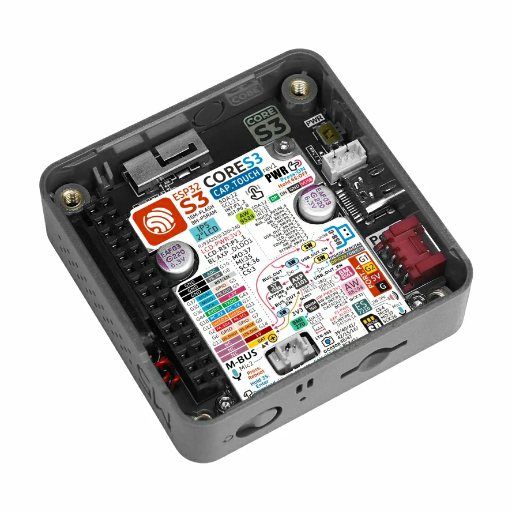

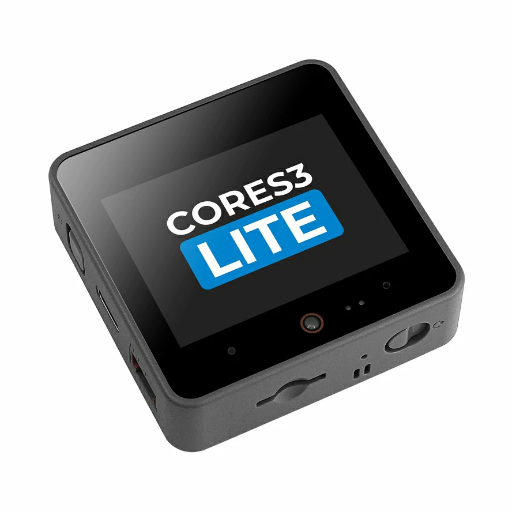

Core S3 Lite
Available missions
