Chronos Navio
Version v1.0.1
Features
ES8311 audio codec
High SNR MEMS microphone
NS4150B amplifier + 1W speaker
3.5mm audio output interface
Infrared emitter
6-axis motion sensor BMI270
microSD card slot
Built-in 1750mAh battery
Specifications
ChipESP32-S3
Flash8MB
Display1.14" LCD
Resolution240x135
Developer resources
Board configuration
Board ID
Use this value as `board_slug` in ESPVerse API requests.
m5-cardputer-adv
PlatformIO configuration
Add this environment to your `platformio.ini` file.
[env:m5-cardputer-adv]
platform = espressif32@6.9.0
framework = arduino
board = m5stack-stamps3
lib_deps =
m5stack/M5Cardputer@1.1.1Hold BTN0/BtnGO while connecting the USB cable or press BtnRst if the USB cable is already connected
Sample images

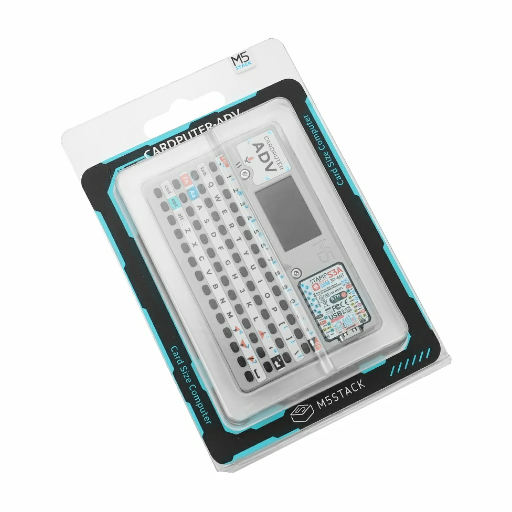

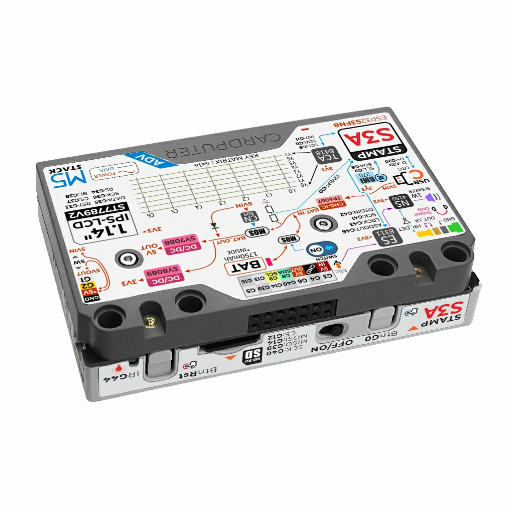

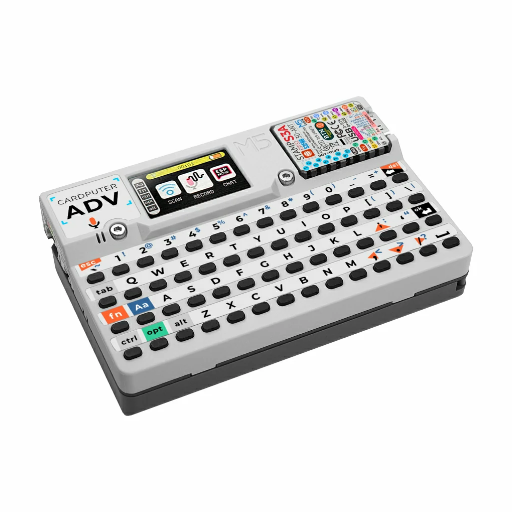

CardPuter Adv
Available missions
